An Electronic Replacement for that Miserable Dash Regulator (IVR)

Written by Tom Jennings, edited by Frank Swygert 02-23-2026

On early Ramblers (1950s-66 American, through 1978 on big cars, all Pacers), the dash voltage regulator (IVR — Instrument Voltage Regulator) is a 19th century style make/break thermostatic device. The 67-69 American and Hornet/Concord/Gremlin/Spirit/Eagle models have one also, but it’s built into the fuel gauge and is a lot harder to replace. These use a bi-metal strip that closes a set of contacts when cool, quickly heats up and opens, then quickly cools and closes again. It cycles fast enough that the sending unit and gauge never gets a full 12V, but an average of 5-6V. They fail when the bi-metallic arm breaks from metal fatigue, leaving the gauges with no voltage. They can also slow down, reducing the voltage so that both the fuel and temp gauges read low. That’s the first sign that most people see of a failing IVR – both gauges read low (or not at all). If only one gauge isn’t reading correctly it’s most likely the sending unit (but could be gauge). The IVR should only be suspect when BOTH gauges are behaving abnormally in the same way.

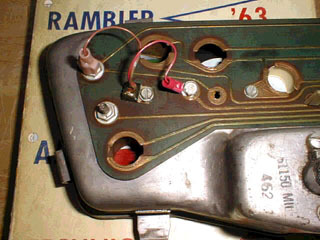

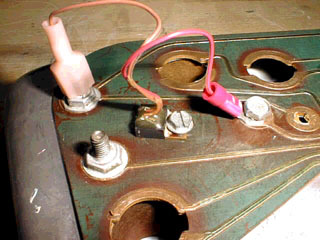

Though replacements can now be found they can easily be replaced with a modern “three terminal” regulator, ala  LM7805 or equiv. I did this years ago. I recently had to take out the dash gauge cluster for another reason so I took the opportunity to photograph it. In the top photo is how I mounted it under an existing screw, also grounding the unit; the bottom photo is a closeup. You can get ’em at any electronic supply. It doesn’t have to be an LM7805, any 5V regulator of about 1 amp will suffice (the gauges don’t even pull an amp) .  You have to solder wires on it. Clip off the center pin. With the mounting tab at the top, the left pin is “IN”, connect to battery on gauge PC board. The right pin is “OUT”, 5 volts. Connect to regulator trace on PCB. IMPORTANT: mount the tab onto a GROUNDED screw as I did (tab is GROUND, same as middle pin cut off). Gently bend up pins and insulate/protect with epoxy.
