11-16-2025 edited by Frank Swygert

This is part 1 of 2 parts.

This is the complete 1973 to 1978 American Motors factory parts catalog F-14078, revision 3.  The catalog is 1274 pages in one large PDF file, 82.8 MB.

The underlying PDF document is courtesy Greyhounds_AMX, from
TheAMCForum.com, and his friend
Rick. Physically scanning and indexing 2000 pages of 60-year-old-document
is no small feat, and is a huge boon to the AMC/Rambler community.

Illustrations

For this catalog, the illustrations are in a separate catalog, 73-78 F-15078 R3 Illustration Supplement. There are limited illustrations in the main catalog.

About Groups

AMC classified all of the parts that go into their cars into Groups. Most groups are unambiguous (e.g. Group 1, Engine) but sometimes you have to get imaginative (e.g. speedometer calibration gears are under “Electrical”) (my interpretation: instrument panel gauges) or just memorize (Rear Suspension is in Group 11 with Springs and Shocks). On the whole it’s well done.

About part numbers

AMC and Jeep part numbers are almost universally of the form XXX-XXXX, seven digits, the first digit always 3. (e.g. 320 7888 is a hard to find transmission yoke). Occasionally a suffix letter. Many of the AMC parts dealers prefer to work with part numbers, since there are often many small variations of a part (e.g. transmission yokes) that otherwise look identical.

Here is a rough visual guide to AMC parts groups.

1973..1978 AMC parts catalog F-14078 R3

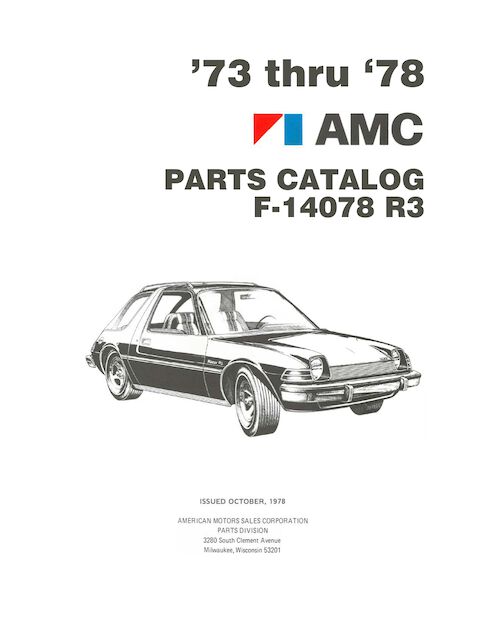

Cover (p. 1)

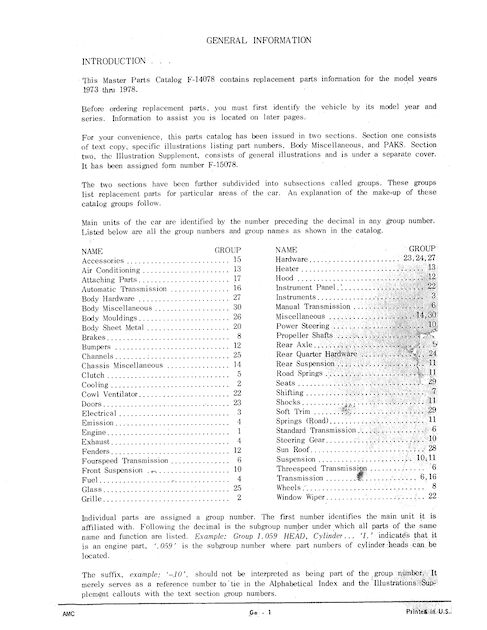

General information (p. 2)

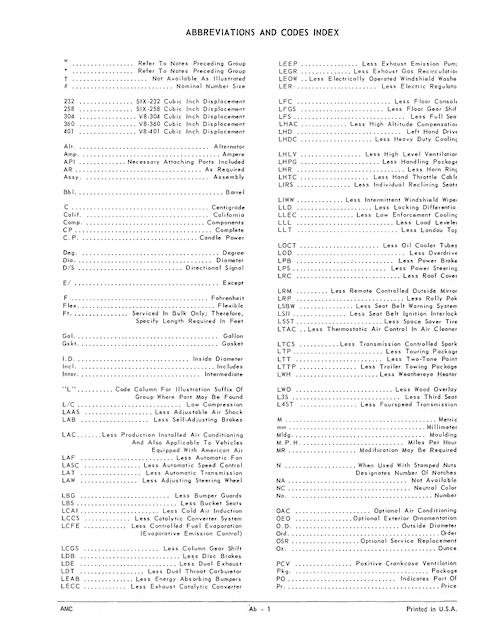

Abbreviations and Codes index (p. 29)

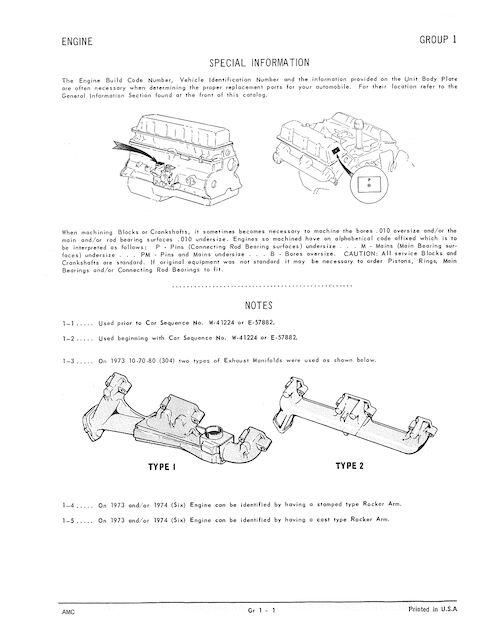

Group 1: Engine (p. 77)
